Product Details:
|
| Type: | Titanium Pipes | Application: | Industrial, Medical |
|---|---|---|---|
| Technique: | Seamless | Grade: | Gr.5,Gr.7,Gr.9 Etc |
| Shape: | Round | Outer Diameter: | 10-200mm |
| High Light: | seamless titanium tubing,bending titanium tubing |
||
Product Description
1.ASTM B338 Gr2 Titanium Alloy Pipe for Heat Exchanger
2. Material Grade:
TA1,TA2,TA3,TA4,TA7,TA9,TA10,TA15,TA18,TA19,TC3,TC4,TC6,TC11,TC17,TC18,TC19,TC20,
TC25,TB2,TB6,7715D,STi80,GR1,GR2,GR3,GR4,GR6,GR12,GR9,Ti-6242S,GRF-5,GR23,Ti-6246,Ti-10-2-3,BT1-00,BT1-0,BT5-1,BT20,BT6C,BT6,BT3-1,BT9,BT22 and so on.3.Standard: ASTM BS JIS NF DIN GB
4. Size: The pipe, diameter is 6mm-500mm
The thickness is 0.2mm-100mm.
The length is 500mm/1000mm/2000mm/3000mm,or as your requirements.
5. Length: 500--6000mm,or other length as the customers' requirements.
6. Process: welded, seamless
7. Surface: mill surface, polished surface
Applications
Chemical industry
Blades,discs,rings,airframes,fasteners,components.
Vessels,cases,hubs,forgings.Biomedical implants
| Grade | Elongation(%) | Tensile Strength (Min) | Yield Strength (Min) | ||
| ksi | Mpa | ksi | Mpa | ||
| Gr1 | 24 | 35 | 240 | 20 | 138 |
| Gr2 | 20 | 50 | 345 | 40 | 275 |
| Gr3 | 18 | 65 | 450 | 55 | 380 |
| Gr4 | 15 | 80 | 550 | 70 | 483 |
| Gr5 | 10 | 130 | 895 | 120 | 828 |
| Gr7 | 20 | 50 | 345 | 40 | 275 |
| Gr9 | 15 | 90 | 620 | 70 | 438 |
| Gr12 | 18 | 70 | 438 | 50 | 345 |
Titanium Alloy GR.5 Chemiacl Composition(%)
| Alloy Designation | Element | O | V | Fe | Al | Ti |
| Titanium Alloy GR.7 | Max.% | 0.2 | 4 | 0.25 | 6 | 90 |
| Mechanical Propeties | Titanium Alloy GR.5 |
| Density | 4.43g/cm3 |
| Melting Point | 1604~1660ºC |
| Tensile Strength Min (Mpa) | 950Mpa |
| Yield Strength Min (Mpa):0.2% offset | 880Mpa |
| Elongation A 5%(Min.) | 65/40 |
| HB Max | 334 |
Applications of Titanium Pipe / Titanium Tube:

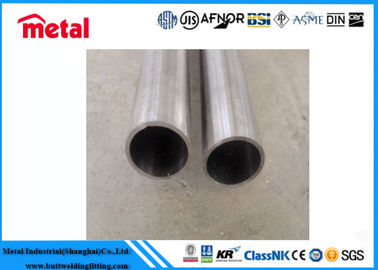

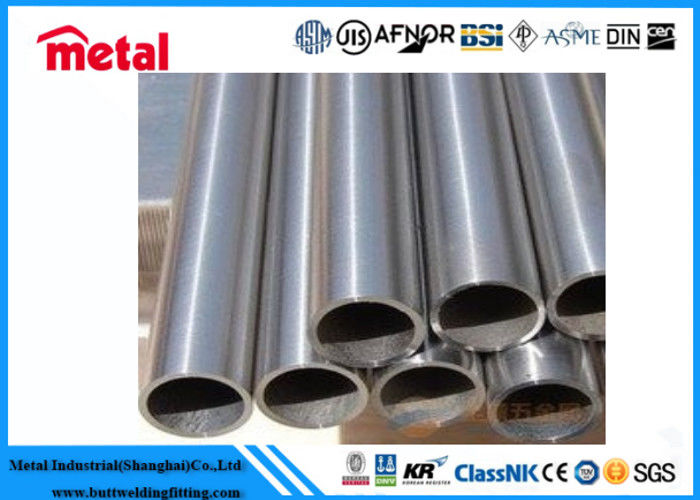

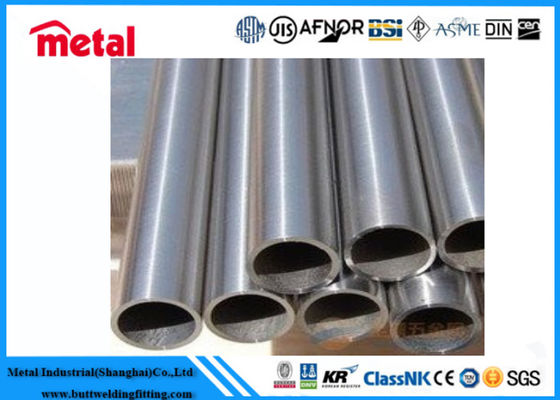

Product preview
Company introduction
Shanghai TOBO GROUP has been engaged in flanges, piep fittings more than 7 years. Our experiecnced and professional team of bending, and full tools and equipments make us provide customers almost all kind of metal U-bent tubes with high quality. With our unique manufacturing capabilities, Shang Hai TOBO GROUP also supply customer with value-added service.
Certificates
Packing
Standard export packing, seaworthy packing, bundles, plastic bag, woven bag, wooden cases, plywood case, iron case, or as per customer require
We will reply you in 24 hours. Please remember check your inbox.
Welcome to inquiry. Looking forward to cooperating with you in the near future.
Transportation
FAQ
Q:Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
